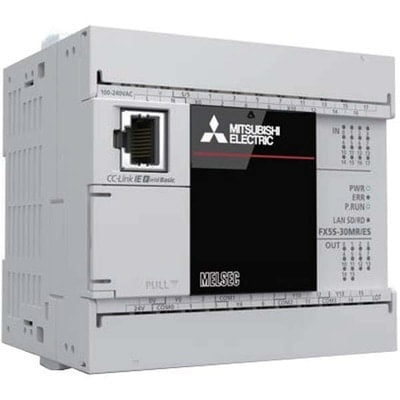

FX5S-30MR/ES
$430.00
Programmable Logic Controller (PLC) CPU unit with built-in I/Os - Mitsubishi Electric (MELSEC iQ-F - FX5S series) - 30I/O [16DI (16 x digital inputs (24Vdc; Sink/Source)) + 14DO (14 x digital outputs (Rly. NO contacts))] - 48Ksteps (96KBytes) flash memory (Program) memory capacity - with screw-clamp connections (I.O's) - with Ethernet communication capability - Supply voltage 100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac) - DIN rail mounting
Product Details
Specifications
Primary brand
Mitsubishi Electric
Main function
CPU unit
Product series / family name
Industrial automation > PLCs (Programmable Logic Controllers) > MELSEC iQ-F series > Controllers (CPUs)
Sub-range name
MELSEC iQ-F - FX5S series
Functions
Programmable Logic Controller (PLC) CPU unit
Program execution type -- standby type
Program execution type -- initial
Program execution type -- scan
Program execution type -- fixed-cycle
Program execution type -- event
Program execution type -- standby type
Program execution type -- initial
Program execution type -- scan
Program execution type -- fixed-cycle
Program execution type -- event
Design
built-in I/Os
Supply voltage (AC)
100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac)
Memory capacity
48Ksteps (96KBytes) flash memory (Program)
1024 points (Timers)
1024 points (Counters)
8000 points (Data registers)
32768 points (File registers)
16GBytes max (SD/SDHC memory card)
120kBytes (Device / label memory)
5MBytes (Data memory / standard ROM)
1024 points (Timers)
1024 points (Counters)
8000 points (Data registers)
32768 points (File registers)
16GBytes max (SD/SDHC memory card)
120kBytes (Device / label memory)
5MBytes (Data memory / standard ROM)
Connection type
screw-clamp connections (I.O's)
RJ45 port (Ethernet)
RJ45 port (Ethernet)
Communication protocol
Ethernet
Mounting mode
DIN rail
Digital inputs
16 x digital inputs (24Vdc; Sink/Source)
Digital outputs
14 x digital outputs (Rly. NO contacts)
Ambient air temperature for operation
+32°F...+131°F / 0°C...+55 °C
Ambient air temperature for storage
-13°F...+167°F / -25°C...+75 °C
Processing time
84ns / instruction (LD X0) - 0.000084 ms
100ns / instruction (MOV D0 D1) - 0.0001 ms
100ns / instruction (MOV D0 D1) - 0.0001 ms
Current consumption
400mA / 0.4A
Power consumption
28 W
Order code / Manufacturer SKU
FX5S-30MR/ES
Manufacturer product status
Commercialized
Compliant with standard(s)
CE (EMC directive)
CE (LVD - Low Voltage Directive)
cUL
UL
KC
CE (RoHS)
CE (LVD - Low Voltage Directive)
cUL
UL
KC
CE (RoHS)
Refreshing time
(Constant scan) 0.5ms-2s / 0.0002-2 s
(Fixed cycle interrupt) 1ms-60s / 0.001-60 s
(Fixed cycle interrupt) 1ms-60s / 0.001-60 s
Option
- FujiACL-40C
